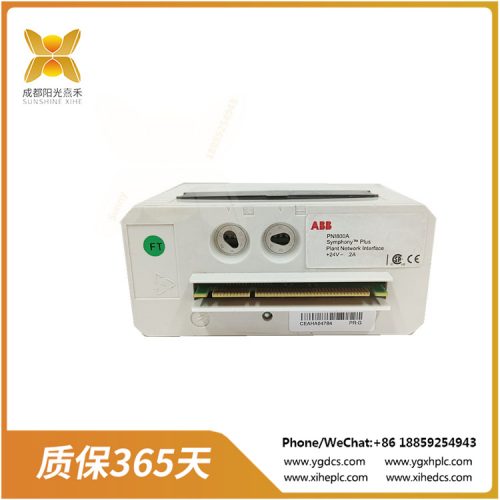

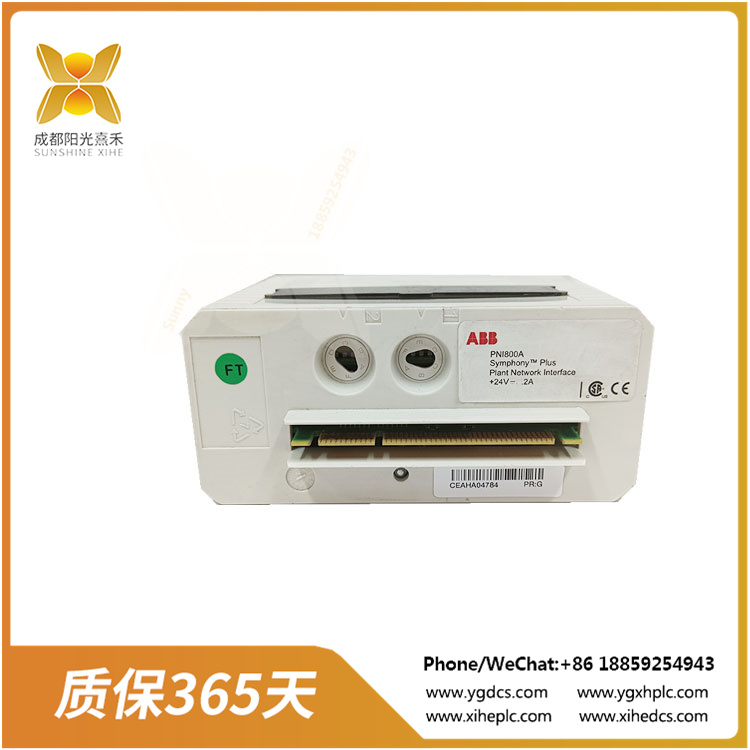

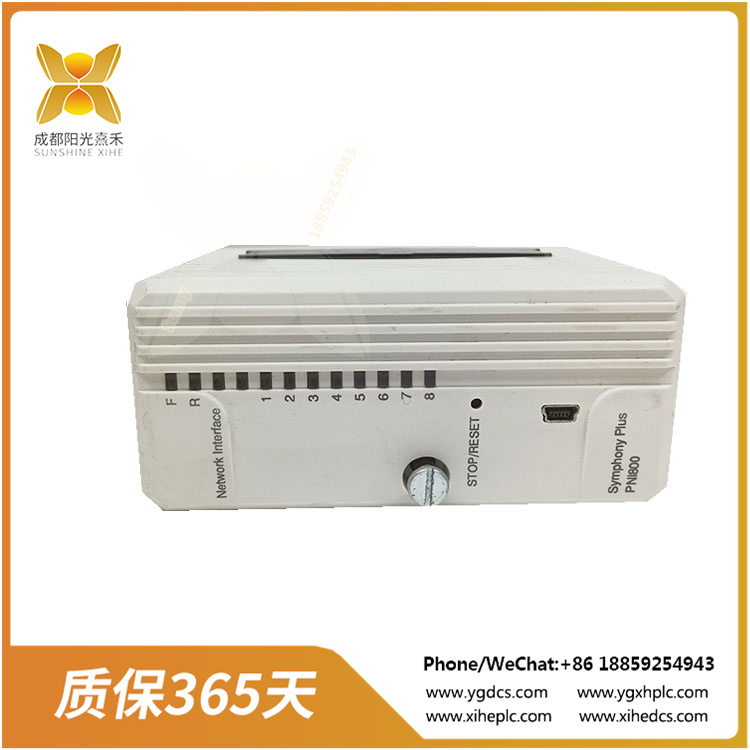

Product introduction：

PNI800 is a communication interface module provided by ABB, which plays an important role in industrial automation and control systems. This module supports a variety of communication protocols, such as Ethernet/IP, PROFINET, Modbus TCP, etc., to achieve efficient and reliable data exchange and communication between devices
. It has high-speed data transmission capabilities to meet the needs of real-time monitoring and control, while being easy to configure and integrate, using a simple and intuitive configuration interface, and supporting rail or panel mounting

The PNI800 module is designed to provide stable communication performance in harsh industrial environments, suitable for production line control, energy management, building automation and many other fields. It uses high-quality hardware components and advanced communication algorithms to ensure high reliability and stability
. In addition, the PNI800 also provides real-time communication capabilities, enabling two-way, real-time data exchange between PC workstations and SD series controllers. Support for S+ Engineering, HMI (SPO or 800xA Operations) or common interface software (such as Harmony OPC Server)

The PNI800 also supports IEC 62439 Parallel Redundancy Protocol (PRP), which provides optimized control network reliability and performance, improving network stability by eliminating single points of failure and supporting zero handover time
. Its functionality has been virtualized and is available as an optional “VPNI” for SPE engineering, SPO and 800xA Operations HMI software, as well as general-purpose interface software such as the Harmony OPC server. However, performance and capacity may vary between PNI800 and VPNI software

In addition, the physical parameters of the PNI800 module include input voltage of 24V DC, operating temperature range from -40 ° C to +85 ° C, communication interfaces including Ethernet, Modbus, TCP/IP, power consumption of 5W, and external dimensions of 100mm × 75mm × 35mm
. The PNI800 is also part of ABB’s Periforma I/O Industrial I/O system family, offering flexible sensor data acquisition capabilities, support for multiple sensor types, and high IP65/IP67 protection

VBX01BA is a product made by ABB, and according to search results, it appears to have two different applications:

Bus extender: ABB VBX01BA Bus extender is a tool for increasing the flexibility and extensibility of fieldbus systems, suitable for a variety of automation environments. It has the following features:

Power requirement: 24 V DC (+/-20%)
Operating temperature range: -25°C to +70°C
Maximum bus length: 1000 m
Maximum number of slave stations: 31
Communication speed: up to 12 Mbps
Housing material: metal
Mounting method: DIN rail mounting
Size: Height 90 mm, width 35 mm, depth 130 mm This bus extender is capable of extending bus length, increasing the number of nodes, data distribution and power distribution for data transmission and control solutions for large systems and remote devices

Servo motor module: The VBX01BA is also described as a 6D digital I/O control module introduced by ABB for use in the UR series robotic arms. It provides 16 digital inputs and 16 digital outputs for controlling external devices and sensors. The module is designed to withstand harsh industrial environments and has the following parameters:

Power supply voltage: 24 V DC
Power consumption: 5 W
Digital input/output: 16 each, NPN or PNP
Maximum current: 2 A
Maximum voltage: 30 V DC
Protection level: IP67
Dimensions: 100 x 50 x 30 mm
Weight: 200g
Material: Aluminum alloy
Connection mode: M12 Threaded connector This module is suitable for manufacturing, logistics, food processing, pharmaceutical, electronics and other industrial fields

The LXN1604-6 is an industrial-grade I/O module produced by ABB and belongs to the LXN1600 series. This 6-channel digital input/output module is known for its high performance, high reliability and high anti-interference capability, which is suitable for industrial automation, instrumentation, transportation and other fields
. It has the following features:

Number of channels: 6 channels
Input/Output type: digital input/output
Voltage range: 24 VDC
Current per channel: 2 A
Power per channel: 48 W
Response time: less than 1 microsecond
Insulation voltage: 2.5 kVDC
Protection function: including over voltage protection, over current protection and short circuit protection
Operating temperature range: -25°C to +60°C
Mounting method: DIN rail mounting
In addition, the LXN1604-6 also has an energy-saving mode, which enables efficient and stable operation, and provides a wide voltage input range as well as optional output voltages to meet the power needs of different equipment
. Its guideway design facilitates integration into automation systems and is easy to maintain. This module is also suitable for applications requiring high power density power supplies, such as industrial automation control equipment, power control systems, etc

The ABB LXN1604-6 also provides 16 digital input channels and 16 digital output channels for the ABB Ability™ System 800xA control system
. The module is IEC 61131-2 compliant and is suitable for a variety of industrial applications such as process control, power distribution, automotive manufacturing, food processing, metallurgy, mining and water treatment

Product parameters include:

Number of channels: 16 digital inputs and 16 digital outputs
Voltage range: 24V DC
Current: 2 A
Response time: less than 1 ms
Power consumption: less than 5W
Operating temperature range: -20°C to +60°C
Protection level: IP67
Dimensions: 120 mm x 45 mm x 30 mm

The LXN1604-6 3BHL000986P7000 also has 16 digital input and 16 digital output channels for ABB Ability™ System 800xA control systems
. It is suitable for a variety of industrial sectors, including power, oil and gas, chemical industry, pharmaceuticals, food and beverage, metallurgy and water treatment

The PP846A 3BSE042238R2 is an industrial control display device manufactured by ABB for monitoring and controlling industrial automation systems. The following are the main features and specifications of the device:

Product ID: EXC3BSE042238R2, belongs to ABB PP846A series
Display device: Designed to clearly display system status, parameters and operating information such as temperature, pressure, flow and speed
Operation mode: Support touch screen or key operation, easy for users to control operation
Resolution: The device has a high-resolution display to ensure the clarity of information display
Power supply: Input and output voltage are 24V DC
Operating temperature range: -40℃ to 70℃, suitable for a variety of industrial environments
Communication interface: Support Ethernet, Modbus, TCP/IP and other communication protocols, easy to exchange data with other systems or devices
Additional features: With alarm function, it can issue an alarm in time when the system is abnormal
Dimensions: Not explicitly provided, but generally the PP846A series devices are compact and easy to install
Net weight: 3.115 kg
Technical information: PP846A – Panel 800 Operator Panel Exchange
Order Information: Customs tax number 85371091, product type Control_System_Accessory
The equipment is widely used in power, chemical, pharmaceutical, food processing and other industrial automation control fields, improve production efficiency, reduce energy consumption, and reduce human error, support the intelligent and digital transformation of enterprises
