Product introduction：

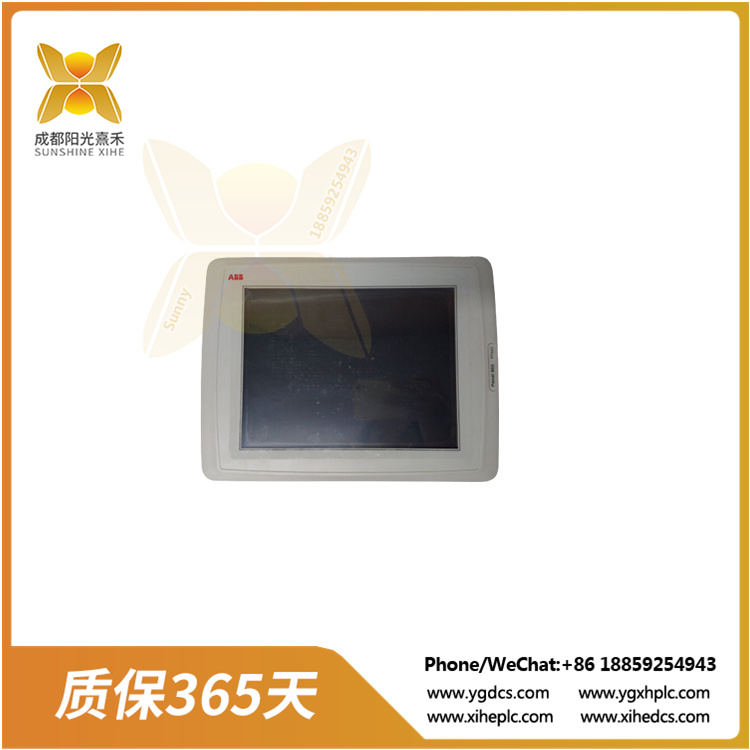

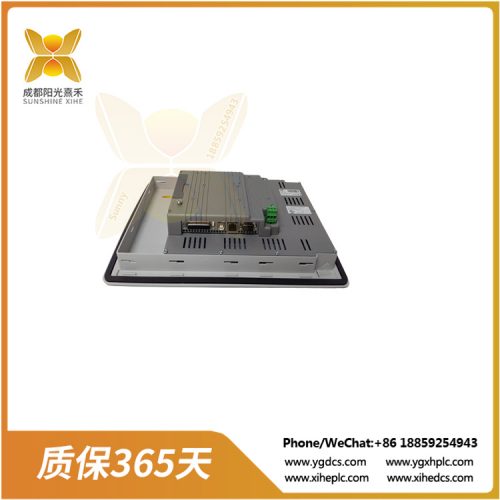

The PP846 3BSE042238R1 is an industrial touch screen from ABB, part of the Panel 800 series, widely used as a human machine interface (HMI) device in industrial automation control systems. The following are the detailed parameters and features of the device:

Screen size: 10.4 inches, providing a clear display
.
Resolution: 640 x 480 pixels, showing rich interface details
.
Display color: Supports 256 color display, making the interface color rich and diverse
.
Display brightness and contrast: brightness is 200 cd/m², contrast is 200:1, ensuring that it can be clearly displayed in different lighting conditions
.
Touch screen type: Resistive touch screen, support finger or stylus operation
.
Processor: 266 MHz ARM9, providing enough processing power to ensure smooth operation of the system
.
Memory: 32MB RAM and 32MB flash, providing enough storage space to hold applications and data
.
Communication interface: With one RS-232 serial port and one RS-485 serial port, support a variety of communication protocols, such as Modbus RTU/TCP, ABB CS31, ABB Advant, ABB Master, etc
.
Power input: 24VDC, power consumption is 18W
.
Operating temperature: 0℃ to 50℃, storage temperature: -20℃ to 60℃
.
Physical characteristics: Dimensions are 290mm x 226mm x 59mm, weight is 1.6kg
.
Additional features: Support real-time data display, alarm and notification functions, with a variety of communication interfaces, user-friendly and high reliability
.
In addition, the PP846 3BSE042238R1 has a TFT 800×600 pixel display, has a shipping weight of 8 Kg, and can be replaced through the RMA program

The MPRC086444-005 is a digital input module manufactured by ABB that is commonly used in industrial automation and control systems to receive and process digital signals. Here are some of the key features and parameters of the module:

It is highly reliable and uses high-quality materials and manufacturing processes to ensure stable operation in harsh working environments

The modules are designed to be durable to meet the requirements of industrial environments, such as resistance to corrosion, high temperatures and high humidity

Supports a variety of communication protocols and interfaces to facilitate communication and data exchange with other devices

Modular design for easy maintenance and upgrade

With overload protection and short circuit protection function, effectively protect the normal operation of other modules

High efficiency, low noise, low temperature rise, etc

The input voltage is 24VDC (20-30VDC), the output voltage is 5VDC, and the output current is 2A

The overall dimensions are 67.5mm×122.5mm and the weight is about 0.7kg

In addition, the MPRC086444-005 measuring and processing board is used in ABB Procontrol DCS system, which can collect analog and digital signals from field equipment, and process and analyze them to provide control and protection functions for DCS system
. It supports 32 channels, including 16 analog inputs and 16 digital inputs, as well as 4 analog outputs and 4 digital outputs, and operates in a temperature range of -25°C to 70°C

UFC719AE101 3BHB003041R0101 3BHB00072R0101 is a high performance and high reliability controller module produced by ABB, which is widely used in power, energy, industrial automation and other fields. The module has the following features:

It adopts high-speed processor and advanced data processing technology to provide extremely high calculation speed and control accuracy.
It supports a variety of input and output interfaces and communication protocols, and has good flexibility to connect and communicate with various devices.
Stable and reliable, can operate stably in harsh environmental conditions.
Supports a variety of expansion cards and accessories to meet different user needs.
User-friendly, easy to program, debug and maintain.
It is suitable for various industrial automation application scenarios, such as electromechanical control, frequency converter, power conversion, etc., and can meet the needs of different fields through different configurations.
In addition, the UFC719AE101 module is part of the Freelance control system, which is a scalable system for a variety of applications, including OEM applications requiring AC700F controllers. The module is rated at 85-132V and 0.5A, and is equipped with an instruction register to save the instructions that are currently being executed or will be executed. Programming can be done with ABB Control Builder Plus software or ABB Automation Builder software and supports a variety of programming languages, including function Block diagrams (FBD), ladder diagrams (LD), and structured text (ST

UFC721AE101 3BHB002916R0101 is a high-precision, multi-function analog input module produced by ABB, which is used for the acquisition, conversion and control of various analog signals in industrial automation control systems
. The module has the following features:

Eight single-ended or four differential analog input channels.
Can receive voltage, current, temperature, pressure, flow and other types of analog signals.
The input range can be configured according to different signal types, such as 0-10V, 0-20mA, ±10V, ±20mA, PT100, Type K thermocouple, etc.
It has a 24-bit resolution and ±0.05% accuracy.
Sampling rate up to 10kHz.
Supports RS485, Ethernet, Modbus, Profibus DP, EtherNet/IP communication interfaces.
The operating power supply is 24V DC, and the operating temperature ranges from -25℃ to +55℃.
Single-width design for 35mm DIN rail mounting with a weight of approximately 0.2kg
.
In addition, the module uses industrial grade components and design, with high anti-interference capability and stability, suitable for applications in harsh environments. At the same time, the module supports hot-swappable function for easy maintenance and upgrade, is compatible with ABB’s AC500 PLC, and can be connected with other brands of controllers and devices

ABB UBC717AE01 HIEE300927R0101 is a universal input/output module manufactured by ABB with the following features and parameters:

The module has 16 digital input channels and 16 digital output channels

The input voltage range is 0-30V DC, and the output voltage range is also 0-30V DC

The sampling rate is up to 1ms/ channel and the resolution is 12 bits

Multiple input types are supported, including switching input, pulse count input, and analog input such as voltage, current, temperature, pressure, etc

Output types support switching output, PWM output, and analog output including voltage output and current output

Communication interfaces support RS485, Profibus, Modbus, EtherNet/IP and other communication protocols

The operating temperature range is -25℃ to +70℃, and the working power supply is 24V DC

The size is single width, suitable for 35mm DIN rail mounting and weighs approximately 0.1kg

In addition, the module plays a key role in industrial automation control systems, meeting the needs of a variety of different industrial control scenarios by implementing flexible data exchange and communication functions
. It can ensure real-time and reliable communication between system components, improve system reliability and security, reduce maintenance costs, and improve overall production efficiency and quality

The UBC717AE01 also has built-in redundancy features, such as a hot-swapable communication card, to ensure uninterrupted system operation in the event of a failure
. The module uses Ethernet communication protocol to provide high-speed and reliable data transmission, and supports a variety of communication protocols, such as Modbus TCP/IP and OPC, to facilitate integration with different devices and systems
