Product introduction：

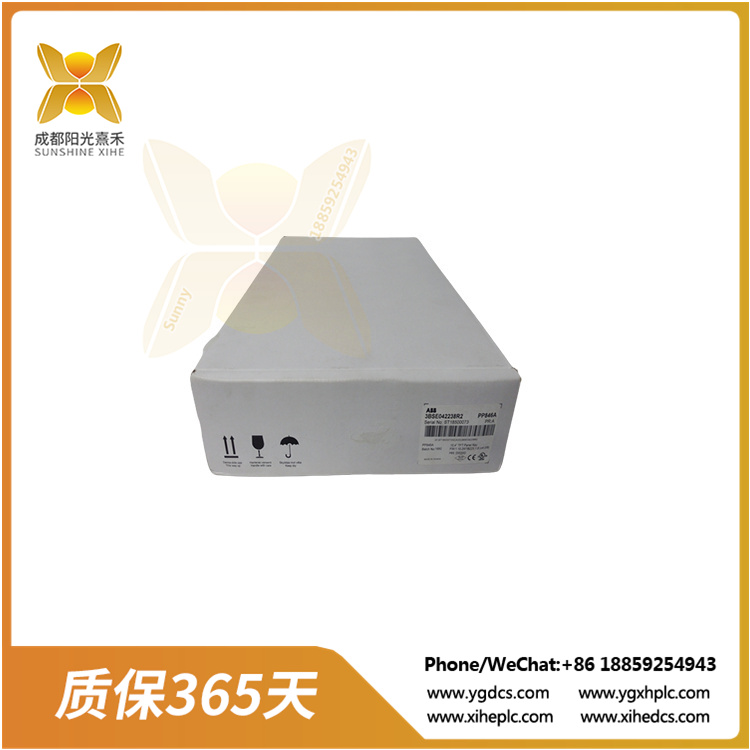

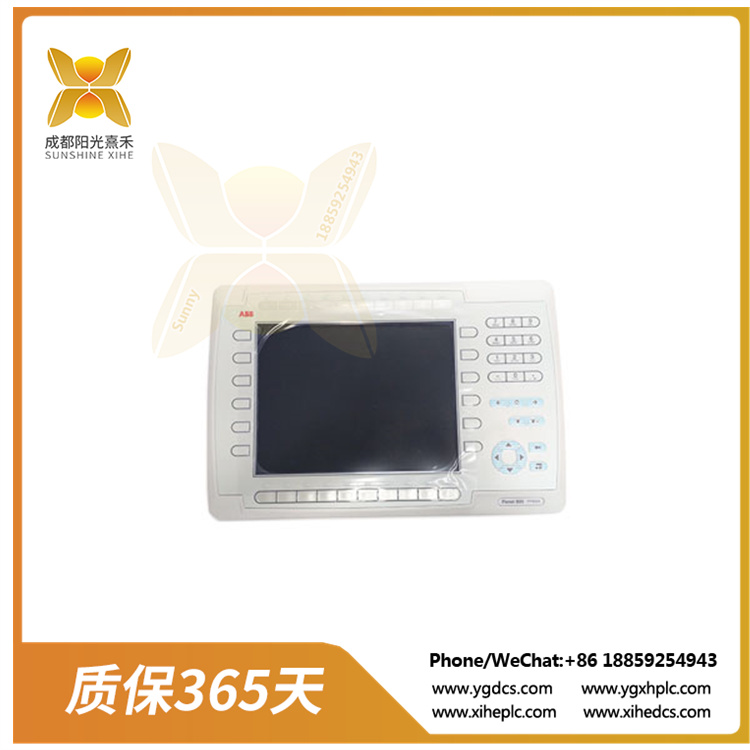

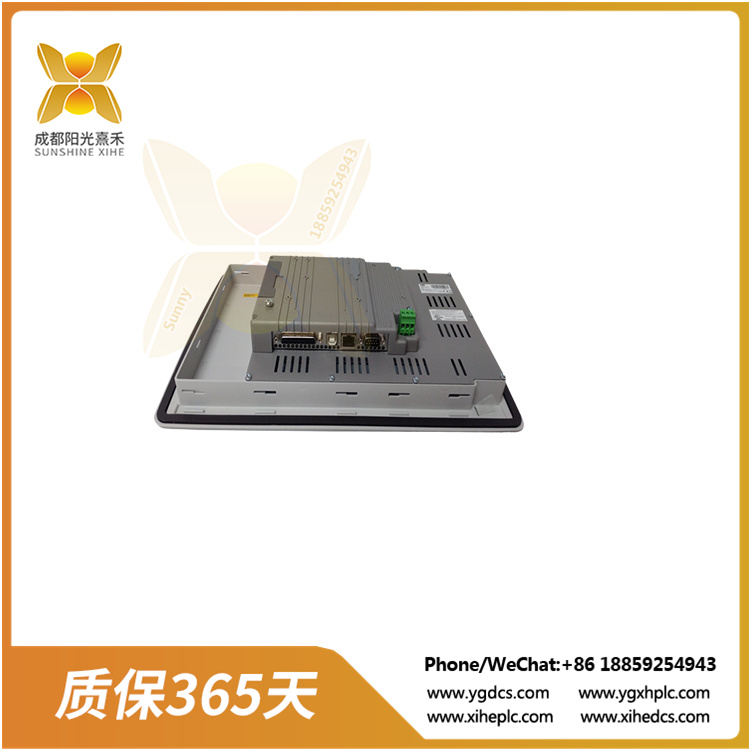

The PP846A 3BSE042238R2 is an industrial control display device manufactured by ABB for monitoring and controlling industrial automation systems. The following are the main features and specifications of the device:

Product ID: EXC3BSE042238R2, belongs to ABB PP846A series
Display device: Designed to clearly display system status, parameters and operating information such as temperature, pressure, flow and speed
Operation mode: Support touch screen or key operation, easy for users to control operation
Resolution: The device has a high-resolution display to ensure the clarity of information display
Power supply: Input and output voltage are 24V DC
Operating temperature range: -40℃ to 70℃, suitable for a variety of industrial environments
Communication interface: Support Ethernet, Modbus, TCP/IP and other communication protocols, easy to exchange data with other systems or devices
Additional features: With alarm function, it can issue an alarm in time when the system is abnormal
Dimensions: Not explicitly provided, but generally the PP846A series devices are compact and easy to install
Net weight: 3.115 kg
Technical information: PP846A – Panel 800 Operator Panel Exchange
Order Information: Customs tax number 85371091, product type Control_System_Accessory
The equipment is widely used in power, chemical, pharmaceutical, food processing and other industrial automation control fields, improve production efficiency, reduce energy consumption, and reduce human error, support the intelligent and digital transformation of enterprises

The PP846 3BSE042238R1 is an industrial touch screen from ABB, part of the Panel 800 series, widely used as a human machine interface (HMI) device in industrial automation control systems. The following are the detailed parameters and features of the device:

Screen size: 10.4 inches, providing a clear display
.
Resolution: 640 x 480 pixels, showing rich interface details
.
Display color: Supports 256 color display, making the interface color rich and diverse
.
Display brightness and contrast: brightness is 200 cd/m², contrast is 200:1, ensuring that it can be clearly displayed in different lighting conditions
.
Touch screen type: Resistive touch screen, support finger or stylus operation
.
Processor: 266 MHz ARM9, providing enough processing power to ensure smooth operation of the system
.
Memory: 32MB RAM and 32MB flash, providing enough storage space to hold applications and data
.
Communication interface: With one RS-232 serial port and one RS-485 serial port, support a variety of communication protocols, such as Modbus RTU/TCP, ABB CS31, ABB Advant, ABB Master, etc
.
Power input: 24VDC, power consumption is 18W
.
Operating temperature: 0℃ to 50℃, storage temperature: -20℃ to 60℃
.
Physical characteristics: Dimensions are 290mm x 226mm x 59mm, weight is 1.6kg
.
Additional features: Support real-time data display, alarm and notification functions, with a variety of communication interfaces, user-friendly and high reliability
.
In addition, the PP846 3BSE042238R1 has a TFT 800×600 pixel display, has a shipping weight of 8 Kg, and can be replaced through the RMA program

The MPRC086444-005 is a digital input module manufactured by ABB that is commonly used in industrial automation and control systems to receive and process digital signals. Here are some of the key features and parameters of the module:

It is highly reliable and uses high-quality materials and manufacturing processes to ensure stable operation in harsh working environments

The modules are designed to be durable to meet the requirements of industrial environments, such as resistance to corrosion, high temperatures and high humidity

Supports a variety of communication protocols and interfaces to facilitate communication and data exchange with other devices

Modular design for easy maintenance and upgrade

With overload protection and short circuit protection function, effectively protect the normal operation of other modules

High efficiency, low noise, low temperature rise, etc

The input voltage is 24VDC (20-30VDC), the output voltage is 5VDC, and the output current is 2A

The overall dimensions are 67.5mm×122.5mm and the weight is about 0.7kg

In addition, the MPRC086444-005 measuring and processing board is used in ABB Procontrol DCS system, which can collect analog and digital signals from field equipment, and process and analyze them to provide control and protection functions for DCS system
. It supports 32 channels, including 16 analog inputs and 16 digital inputs, as well as 4 analog outputs and 4 digital outputs, and operates in a temperature range of -25°C to 70°C

UFC719AE101 3BHB003041R0101 3BHB00072R0101 is a high performance and high reliability controller module produced by ABB, which is widely used in power, energy, industrial automation and other fields. The module has the following features:

It adopts high-speed processor and advanced data processing technology to provide extremely high calculation speed and control accuracy.
It supports a variety of input and output interfaces and communication protocols, and has good flexibility to connect and communicate with various devices.
Stable and reliable, can operate stably in harsh environmental conditions.
Supports a variety of expansion cards and accessories to meet different user needs.
User-friendly, easy to program, debug and maintain.
It is suitable for various industrial automation application scenarios, such as electromechanical control, frequency converter, power conversion, etc., and can meet the needs of different fields through different configurations.
In addition, the UFC719AE101 module is part of the Freelance control system, which is a scalable system for a variety of applications, including OEM applications requiring AC700F controllers. The module is rated at 85-132V and 0.5A, and is equipped with an instruction register to save the instructions that are currently being executed or will be executed. Programming can be done with ABB Control Builder Plus software or ABB Automation Builder software and supports a variety of programming languages, including function Block diagrams (FBD), ladder diagrams (LD), and structured text (ST

UFC721AE101 3BHB002916R0101 is a high-precision, multi-function analog input module produced by ABB, which is used for the acquisition, conversion and control of various analog signals in industrial automation control systems
. The module has the following features:

Eight single-ended or four differential analog input channels.
Can receive voltage, current, temperature, pressure, flow and other types of analog signals.
The input range can be configured according to different signal types, such as 0-10V, 0-20mA, ±10V, ±20mA, PT100, Type K thermocouple, etc.
It has a 24-bit resolution and ±0.05% accuracy.
Sampling rate up to 10kHz.
Supports RS485, Ethernet, Modbus, Profibus DP, EtherNet/IP communication interfaces.
The operating power supply is 24V DC, and the operating temperature ranges from -25℃ to +55℃.
Single-width design for 35mm DIN rail mounting with a weight of approximately 0.2kg
