Product introduction：

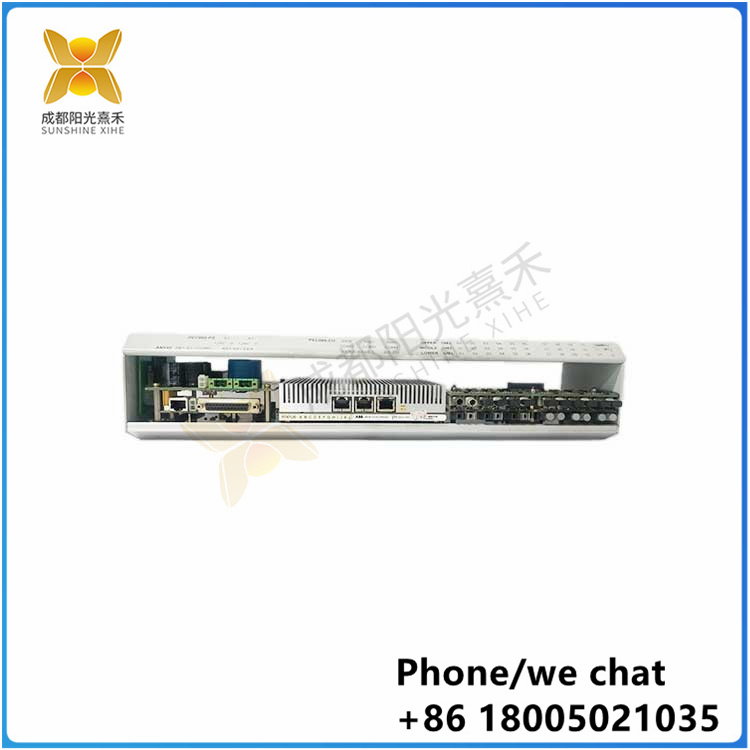

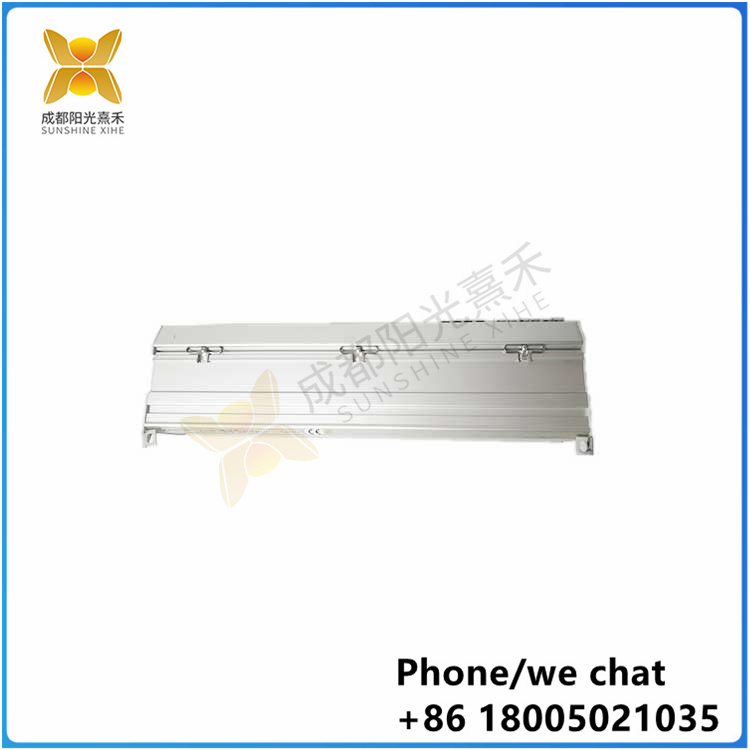

PPD113B03-26-100100 3BHE023584R2625 is a central processing unit (CPU) module produced by ABB for digital low-voltage power distribution systems.
As the core component of the digital low-voltage distribution system, it is responsible for monitoring, controlling and protecting the electrical equipment in the power system
This module has the following features:
Integrated programmable logic capabilities: Through its integrated LogicsManager™ provides excellent application flexibility, often eliminating the need for additional PLC control and easily integrating with SCADA or PLC-based control systems
Flexible hardware configuration: No matter the size of the application, the best hardware configuration is easy to implement, processing power can be concentrated in one location or smart I/O devices can be configured in the field to improve performance
Modular System Architecture: Three system architectures are provided, from small scale to large scale and modular systems, to suit the needs of different scale applications
Seamless integration and scalability: Thanks to the fully modular architecture, it can be integrated into higher level plant control systems without trouble and provides convenience for future expansion and reconfiguration
Efficient and reliable: As a product of ABB, the system is characterized by efficient, reliable and long-term stable operation to meet the needs of a wide range of industrial applications
In addition, according to the information provided by Shanxi Runsheng Import and Export Co., LTD., the rated voltage of this controller is 100-240VAC, the rated power is 100W, the operating temperature range is -20~+50℃, and the overall size is 250mm x 150mm x 50mm, which is suitable for industrial automation field. Used to control and monitor electrical equipment in systems

The 1VCF752000 is a module in the ABB REF542PLUS series, part of the ABB Ability™ Relion® 650 series. This module is a multifunctional protective relay suitable for a wide range of applications, especially feeder protection and control in power systems
The module has a variety of features, including:
Multiple protection functions, such as over current protection, short circuit protection, over voltage protection, under voltage protection, frequency protection and synchronous protection Measurement and monitoring functions, can monitor electrical parameters such as current, voltage, power, electrical energy
Fault diagnosis and event logging, providing detailed recording and analysis of power system faults
Communication function, with RS232, RS485, Ethernet and other communication interfaces, convenient for remote monitoring and data collection with the superior management system
In terms of technical specifications, the REF542PLUS 1VCF752000 module has A rated voltage range from 3 kV to 36 kV and A rated current from 5 A to 6300 A, suitable for a variety of voltage and current levels of power systems
. The modules measure 264 mm x 216 mm x 100 mm, weigh about 6 kg, have a typical power consumption of 50 W, a maximum power consumption of 100 W, and an operating temperature range of -20°C to 60°C

In addition, the REF542PLUS 1VCF752000 module has been widely used in many fields such as industrial control, building automation, data centers and so on due to its high precision, high reliability, ease of use and scalability
. The modular design makes it easy to configure and expand according to user needs, and intelligent management optimizes operating parameters through built-in algorithms to improve the operating efficiency and reliability of the system
. At the same time, the module is compact in design, easy to install and maintain, and may provide a user-friendly operating panel to track equipment status and perform control operations

The REF542PLUS 1VCR007346 is a high performance protective relay module from ABB with a wide range of protection functions for the protection and control of medium voltage distribution networks. Here are some of the key features and application scenarios of the module:
