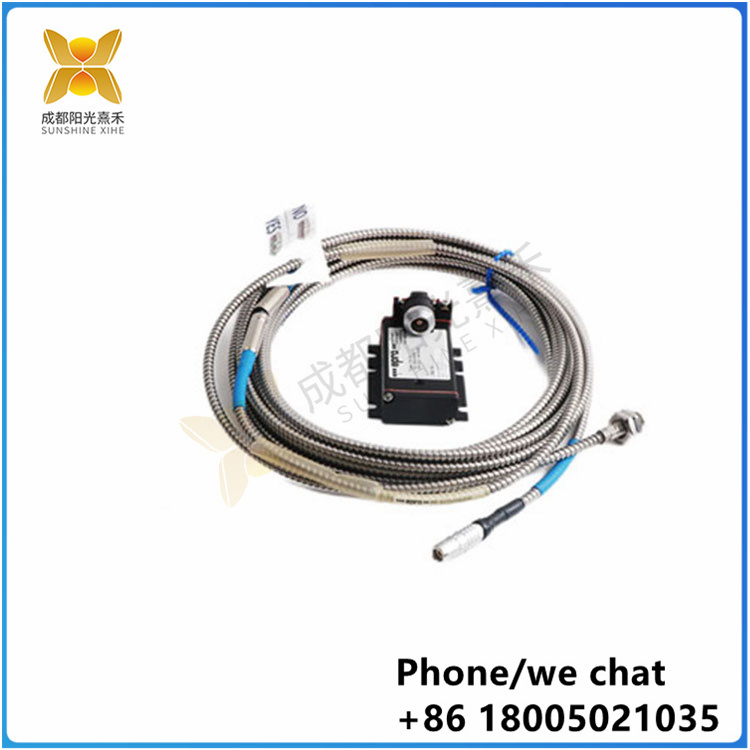

The EPRO PR6423/010-010-CN is a vortex current sensor designed for monitoring rotating machinery in industrial applications such as steam turbines, compressors, pumps, etc. This sensor uses eddy current effects for non-contact measurement and is suitable for operation in harsh environments such as high temperature, high pressure and corrosion
It can measure shaft vibration, speed and axial displacement with high precision and fast response.

The PR6423/010-010-CN sensor has the following features:
High precision measurement with a linear measurement range of 2 mm (80 millimetres).
The initial air gap is 0.5 mm (20 millimetres).
The Incremental scale factor (ISF) is ISO-compliant at 8 V/mm (203.2 mV/mil) ±5% for the temperature range 0 to 45°C (+32 to +113°F).
The minimum axis diameter of the measurement target is 25 mm (0.79 in).
The target material is ferromagnetic steel, the standard material is 42CrMo4 (AISI/SAE 4140), and other materials are available on demand.
Environmental protection class IP66, operating temperature range -35 to +200°C (-31 to 392°F)

In addition, the PR6423/010-010-CN sensor also has a variety of protection features, such as overload protection and short circuit protection, to ensure that the sensor will not be damaged under abnormal conditions and extend its service life. It is used in conjunction with the CON021 signal converter to facilitate signal processing and output

When selecting and using the PR6423/010-010-CN sensor, factors such as range, resolution, frequency response, operating temperature, and protection level need to be considered to ensure that the sensor can meet the needs of practical applications. At the same time, 16 input measurement channels are used for data acquisition based on the construction model as an internal generator, 14-bit ADC and 12-bit DAC for signal simulation, and this node is able to register the periodic signal and display it on the monitor for analysis
