Product Type:Module

Model Number:ILX69-PBM

Protocol Compatibility:Profibus DPV1

Bus Interface:RS-485

Data Transfer Speed:Up to 1 Mbps

Network Capacity:Supports up to 32 nodes

Power Supply:5 to 30V DC

Operating Temperature:-20°C to +60°C

Dimensions:74.4mm x 56.8mm x 10mm

Mounting Type:Panel mount

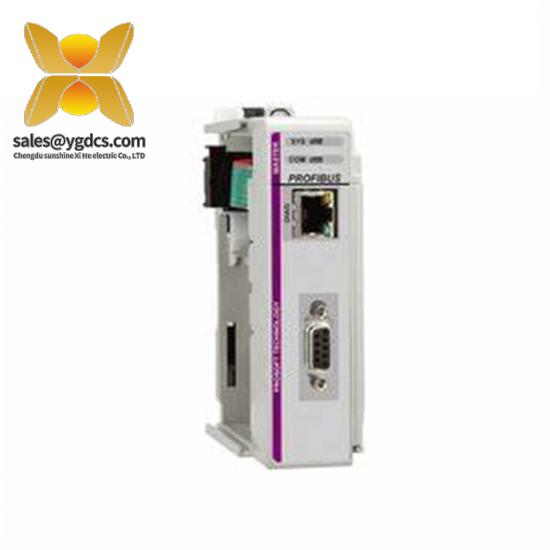

    The Prosoft ILX69-PBM PROFIBUS DPV1 Master Module is engineered for enhanced efficiency and reliability in industrial automation systems. It seamlessly integrates PROFIBUS DPV1 networks with ControlLogix processors, ensuring fast and accurate data exchange for optimal system performance.

    Featuring a single-slot design compatible with 1769 backplanes, this module is recognized as an Input/Output device, granting direct access to processor memory for streamlined data transfer processes. This facilitates quicker response times and improved operational efficiency.

    Utilizing Ladder Logic, users can easily manage data transfer between the module’s memory and the processor controller tags, simplifying programming and maintenance tasks. The inclusion of a sample ladder file with Automatic Open/Close (AOI) streamlines setup and configuration.

    The module’s configuration data is obtained through the ProSoft Configuration Builder Software, enabling users to define the PROFIBUS network precisely and effortlessly. This ensures compatibility and seamless operation within complex industrial environments.

    With a choice of case colors (white or black), the module offers customization options that align with various industrial aesthetics. Moreover, it supports Modbus protocols, enhancing interoperability and expanding communication capabilities with other industrial devices.
