Product introduction：

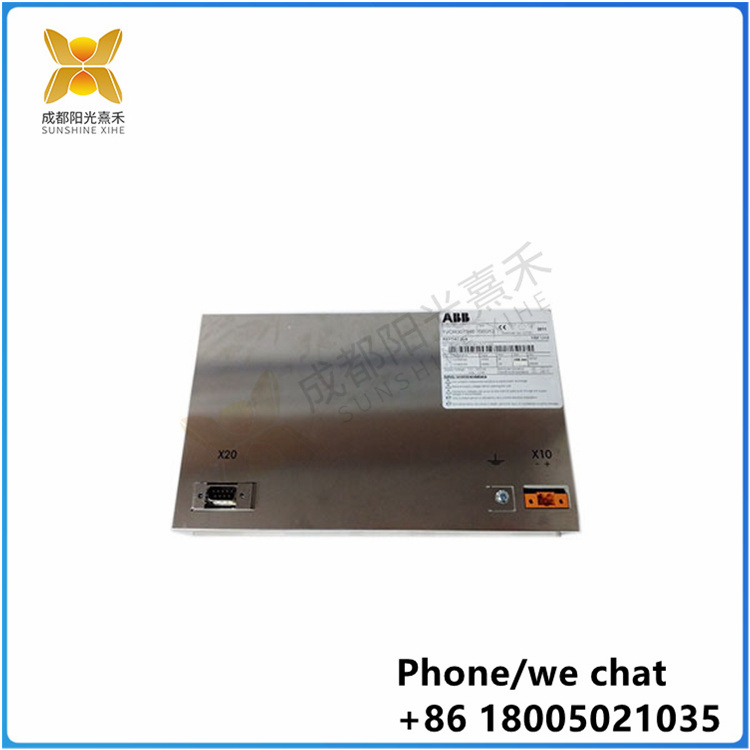

The REF542PLUS 1VCR007346 is a high performance protective relay module from ABB with a wide range of protection functions for the protection and control of medium voltage distribution networks. Here are some of the key features and application scenarios of the module:

Product features:
Provides multiple protection functions such as over current, ground fault and sensitive ground fault protection.
Support a wide range of applications, suitable for power transformers, generators, motors and other electrical equipment protection.
It is compact, easy to install, and can be configured to meet the needs of specific applications.
User-configurable Settings allow for optimal performance and flexibility.
Support Ethernet communication for remote access and monitoring.
Built-in event logger and fault locator for fast fault analysis and troubleshooting.
Integrated human-machine interface to simplify operation and monitoring

Technical specifications:
The rated voltage is 12kV to 36kV.
The rated current is 630A to 5000A.
Support a variety of communication protocols, such as IEC 60870-5-103, Modbus RTU, DNP3.0, etc.
The operating temperature range is wide, from -40°C to +70°C.
The dimensions and weight are 600mm x 400mm x 200mm and approximately 50kg respectively
Application scenario:
Suitable for medium voltage distribution system, including industrial and civil buildings, power plants, substations, oil and gas, chemical industry, metallurgy and other fields.
It can be used in a variety of applications such as feed protection, transformer protection and motor protection to ensure the safe and reliable operation of electrical systems

CI857K01 3BSE018144R1 is a control board module produced by ABB, mainly used in the AC800M series programmable logic controller (PLC). This module is the core component of the PLC and is responsible for executing programs, processing data and controlling I/O devices
The control board module has the following features:
Various communication interfaces may include Ethernet, serial ports, Profibus DP, etc., to achieve data exchange and communication with other devices and systems.
Programmable, can be customized configuration and programming according to application requirements, execute specific control logic.
With data processing capabilities, the input data can be processed, analyzed and stored.
Used for real-time control tasks, capable of performing real-time feedback and control operations.
Meet industry standards to ensure stability and reliability in industrial environments.
An external power supply is usually required to ensure proper operation.
Configuration and management often require the use of specific software tools to customize Settings and monitoring according to application requirements.
Modular design may be supported, allowing users to extend control functions as needed
In addition, the CI857K01-3BSE018144R1 control board module also has a high-performance processor and memory to ensure efficient operation of the PLC, and has a high degree of reliability and easy to expand the characteristics
. Specifically, it includes an Intel Atom E6850 processor, 1.33 GHz mainframe, 512 MB of DDR2 memory, and 2 GB of NAND flash. In addition, the module also provides Ethernet, PROFIBUS DP, RS485 and other communication interfaces, and includes 2 PCI Express Mini Card slots to support expansion
