Product introduction：

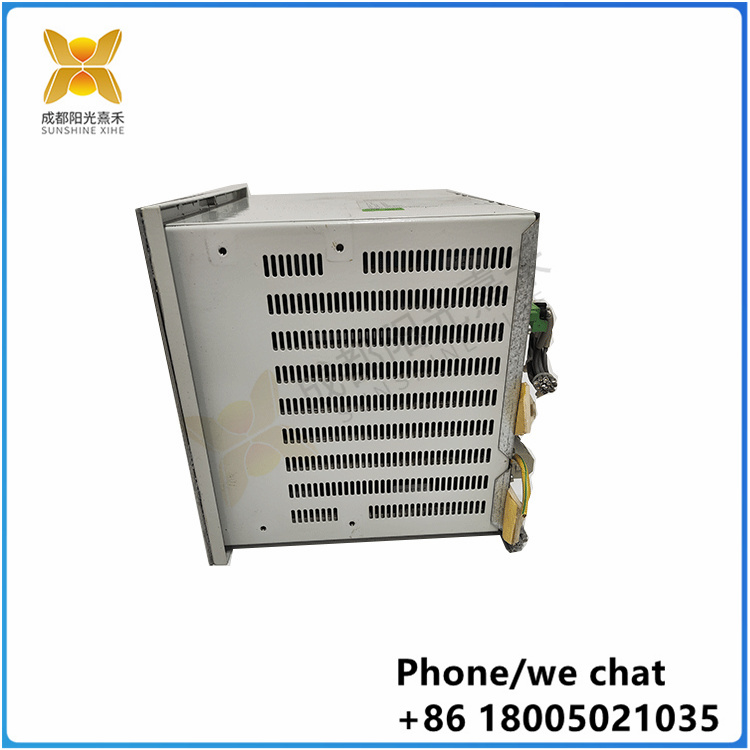

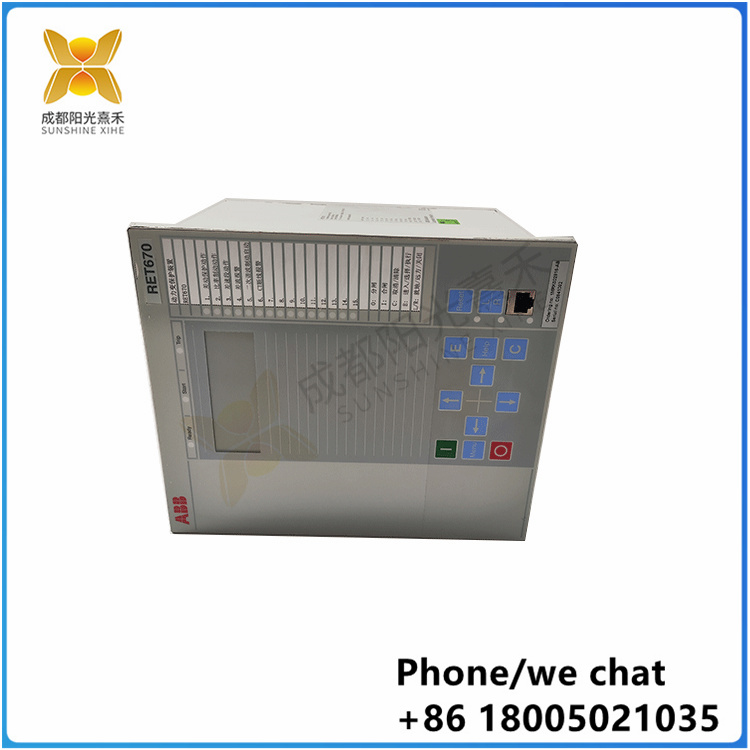

RET670 1MRK002816-AB is a digital protective relay produced by ABB company. It has a variety of functions and features, suitable for the protection and control of power systems. Here are some of the key features and application areas of the product:

Multifunctional protection: The RET670 offers a variety of protection functions, including overcurrent protection, undervoltage protection, overvoltage protection, ground fault protection, etc. These protection functions can be configured and customized according to the needs of different electrical equipment and motors

High-precision measurement: Using advanced digital signal processing technology, RET670 can measure electrical parameters such as current and voltage with high precision, monitor and analyze changes in electrical parameters in real time, accurately judge the operating status of electrical equipment and motors, and issue protective actions in time

Fast response: The relay has a fast response speed, which can quickly cut off the fault circuit when the fault occurs, prevent the expansion of the fault and equipment damage, reduce the power failure time and the risk of equipment damage

Flexible configuration: The RET670 supports flexible configuration and programming, and users can customize personalized protection schemes according to actual needs and characteristics of the power system

Remote Monitoring and Control: The RET670 supports remote monitoring and control functions, allowing operators to remotely monitor the status of the power system and perform necessary operations

Application: RET670 is mainly used in the protection of power equipment, such as transformers, cables, generators, etc., to ensure the stable operation of the power system. It is widely used in power systems, power plants, substations, industrial enterprises and buildings

Differential protection: The RET670 features differential protection with very low CT requirements and is suitable for differential applications with multiple circuit breaker arrangements with up to six constrained CT inputs. It also has second harmonic and waveform block suppression, as well as fifth harmonic suppression to avoid tripping due to CT saturation and transformer inrush current

Other protection features: The RET670 also features a variety of low-impedance limited ground fault protection features, including internal/external fault discriminators for added safety. In addition, the high impedance differential protection function can be used for different applications, such as winding protection, differential protection of autotransformers, shunt reactor protection, etc

5SHY3545L0010 3BHB013088R0001 is a high-power semiconductor device with a four-layer structure consisting of three PNS, including the main pole (anode), auxiliary pole (cathode) and control pole (gate). The module is able to control the conduction of current and voltage, has current and voltage limiting function to ensure the safe operation of the system, and is designed for harsh environments with high reliability and stability

CI854K01 3BSE025961R1 is a communication module produced by ABB company. The details are as follows:

Product Description: This module is a powerful communication module, supporting a variety of communication protocols and the number of nodes, suitable for different industrial application scenarios, with high temperature, low temperature working ability and remote diagnosis function

Communication protocols: Support a variety of fieldbus protocols, such as Profibus DP-V1, PROFInet IO, Modbus TCP, etc

Node support: Up to 120 nodes can be supported, each node can have 244 inputs and 244 outputs

Operating temperature: The module can operate in the temperature range from -25°C to +60°C

Supply voltage: 24 VDC, current is about 0.4 A

Operating system compatibility: Supports multiple operating systems, such as Windows and Linux

Mechanical dimensions: Height 177 mm, width 35 mm, depth 145 mm

Programming tools: Support AC500 PLC, Automation Builder and other programming tools

Data transmission rate: Supports a maximum transmission rate of 12 Mbit/s

Remote diagnosis: Supports remote diagnosis and debugging

In addition, another piece of information indicates that ABB CI854K01 3BSE025961R1 is a communication interface module designed for industrial automation systems, providing a reliable and efficient connection between the control system and field equipment
. Product parameters include Ethernet /IP communication protocols, number of channels, 24 VDC supply voltage, operating temperature range from -40 ° C to +70 ° C, and size 112 × 99 × 27mm

The REF615 IEC is a feeder protection and measurement and control device from ABB that provides the following features and functions:

Highly sensitive and selective ground fault protection: The REF615C-E is designed for the protection, control, measurement and monitoring of utility and industrial distribution systems and can accommodate neutral ungrounding and neutral resistance or impedance grounding of the grid

Multiple standard configurations: The REF615 comes in 12 standard configurations for common feeder protection and measurement and control applications and can be quickly and easily combined to meet different application requirements

Multiple communication protocols are supported, including the IEC61850 communication standard, Parallel Redundancy Protocol (PRP) and High Availability Seamless Redundancy Protocol (HSR), as well as the DNP3, IEC 60870-5-103 and Modbus® protocols. The Profitbus DPV1 protocol is also supported through the SPA-ZC 302 protocol adapter

Key benefits: Integrated protection, control, monitoring and management functions, with a wide range of protection and control functions, supporting sensors or traditional CT, PT. The REF615 is designed for quick installation and testing, with a large LCD screen and a single line chart display to provide thoughtful product life cycle service

CI522A 3BSE018283R1 AF100 Interface Module, this module is a redundant communication interface for the S800 I/O
Application: This module provides flexible and secure protection for electrical installations
And has a wide range of communication features
The circuit breaker can be connected to the industrial communication field
Supports Modbus RTU communication protocol
Allows the exchange of data and information with other industrial electronic devices

The 5SHX1960L0006 is a smart sensor module produced by ABB with a variety of functions and application areas. Here are some details about this module:

In the field of energy and power: This smart sensor can be used to monitor and control various devices and steps in the system, such as wind turbines, transformers, distribution systems, etc., to improve energy efficiency and reduce energy waste by monitoring the operating status of equipment and the parameters of the power system in real time

Manufacturing: In equipment such as automated production lines and robots, the sensor improves production efficiency and human resource utilization by monitoring parameters such as the position and speed of robots in real time

Traffic transmission: Sensors are used to monitor the status of vehicles, roads, traffic lights and other equipment, and improve the safety and efficiency of traffic transmission by real-time monitoring of the operating status of vehicles and road smoothness and other parameters

Environmental monitoring: In the field of environmental monitoring, the sensor is used to monitor air quality, water quality, noise and other environmental parameters, through real-time monitoring of changes in environmental parameters, timely detection of environmental problems and take appropriate measures
