Series:505 Series

Type:High Speed Counter/Encoder Input Module

Operating Voltage:DC 24V

Input Current:Max. 15mA per channel

Counting Channels:8

Measurement Range:Up to 65536 pulses

Frequency Response:1 kHz

Operating Temperature:-20°C to +60°C

Dimensions (WxHxD):84mm x 144mm x 50mm

Weight:Approx. 100g

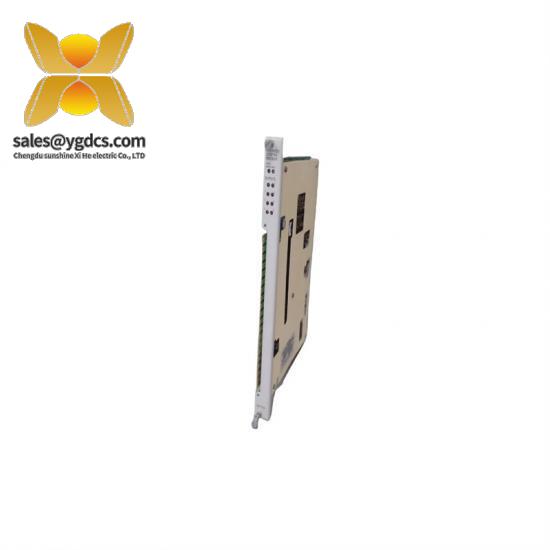

    Introducing the SIEMENS 505-7003 High Speed Counter Module, engineered for exceptional performance in industrial automation environments. This module boasts an advanced design that enables precise counting at high speeds, making it indispensable for applications requiring accurate frequency measurement and control. With its robust capabilities, it ensures reliability and efficiency across a wide range of industrial settings.

    Featuring a DC 24V operating voltage and a maximum input current of ≤ 50mA, this module is optimized for energy-efficient operation. It supports up to four counter channels, each capable of sampling at an impressive rate of up to 200kHz, ensuring swift and accurate data processing. The ± 0.01% accuracy guarantees unmatched precision in your counting tasks, while its operational temperature range from -20°C to +60°C ensures durability in varying environmental conditions.

    Compact yet powerful, the SIEMENS 505-7003 module measures 75mm in width, 51mm in height, and 27mm in depth, making it easy to integrate into existing systems without compromising on space. Its compact size does not come at the cost of functionality, as it maintains all the critical features required for high-speed counting and frequency measurement.

    Whether you’re dealing with complex manufacturing processes or intricate control systems, the SIEMENS 505-7003 High Speed Counter Module is your go-to solution for achieving unparalleled performance and reliability. It’s designed to withstand the rigors of industrial use, offering a seamless integration into your existing infrastructure with minimal downtime.

    Experience the future of high-speed counting today with the SIEMENS 505-7003 High Speed Counter Module. Its cutting-edge technology and robust build quality make it an essential component for enhancing the efficiency and accuracy of your industrial operations.
