Type:Compact CPU with MPI

Model:6ES7 313-5BG04-0AB0

Manufacturer:Siemens

DI Input Count:24

DO Output Count:16

AI Channel Count:4

AO Channel Count:2

PT100 Temperature Sensor:1

Fast Counter Channels:3

High-Speed Processing Rate:30 kHz

Integrated Power Supply:24V DC

Work Memory:128 KB

Connector Type:Front connector (2x 40-pole)

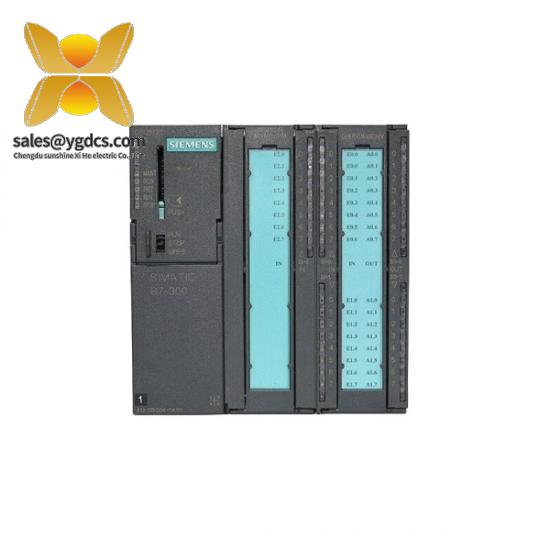

    The Siemens 6ES7 313-5BG04-0AB0 is a robust compact CPU designed for seamless integration into industrial control systems. Its compact design and integrated features make it an ideal choice for space-constrained environments without compromising on functionality or performance.

    Equipped with 128 KB of work memory, this CPU ensures efficient data processing capabilities, making it suitable for applications requiring extensive data handling and control tasks. The inclusion of 24 digital input (DI) and 16 digital output (DO) channels allows for direct connection to various industrial sensors and actuators.

    With 4 analog inputs (AI) and 2 analog outputs (AO), this CPU supports complex control loops, enabling precise adjustment and monitoring of process variables in industrial settings. The addition of 3 high-speed counters at 30 KHz facilitates accurate measurement and control of fast-moving processes.

    Featuring an integrated 24V DC power supply, the CPU eliminates the need for external power supplies, simplifying installation and reducing costs. The front connector with a 2x 40-pin interface ensures easy connectivity and compatibility with other SIMATIC S7-300 components.

    Designed to operate within a wide temperature range of -25°C to +70°C, this CPU ensures reliable operation in diverse industrial environments. Its compact design, combined with the high-speed counters and comprehensive I/O capabilities, makes it a versatile choice for modern industrial automation systems.
