Module Type:Digital Output

Model Number:6ES7 322-1BH01-0AA0

Connector Count:16

Operating Voltage:DC 24V

Current Rating:0.5A per channel

Output Type:Source Output (PNP)

Isolation:Galvanically Isolated

Net Weight:0.165 kg

Package:Single Module

Compatibility:ET 200SP System

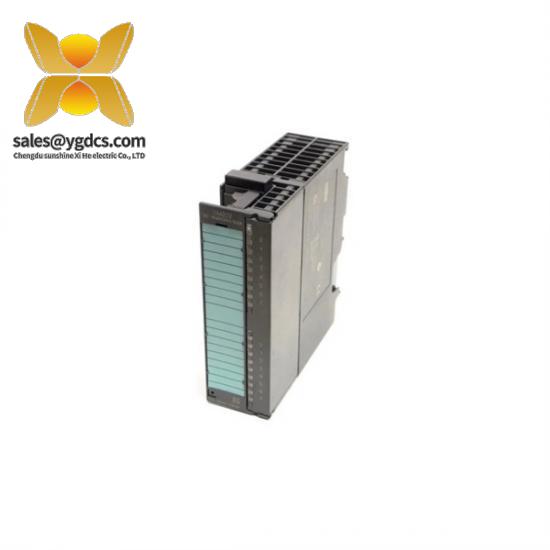

    Experience enhanced efficiency and reliability with the Siemens 6ES7 322-1BH01-0AA0 Digital Output Module, specifically engineered for seamless integration into complex industrial control systems. This module is renowned for its high performance, making it an ideal choice for demanding environments.

    Featuring a robust design, this module ensures stable operation across a broad temperature range (-25°C to +60°C), guaranteeing continuous performance in various industrial settings. Its galvanically isolated outputs provide protection against electrical interference, ensuring safety and preventing damage to connected equipment.

    Equipped with 16 digital outputs, each capable of sourcing 24V DC at 0.5A, this module offers precise control over actuators, solenoids, and other devices requiring binary on/off signals. The source output configuration (PNP) facilitates easy connection and compatibility with a wide array of sensors and actuators.

    Designed with ease of use in mind, the 6ES7 322-1BH01-0AA0 is compatible with a variety of Siemens PLC systems, allowing for seamless integration into existing automation infrastructures. Its compact size (102mm x 93mm x 105mm) and lightweight construction make it highly portable and adaptable to different mounting configurations.

    For a comprehensive solution, the module supports advanced diagnostic functions, enabling users to quickly identify and resolve issues without the need for external tools. The included modular connectors facilitate quick installation and maintenance, further enhancing system uptime and productivity.
