Product introduction：

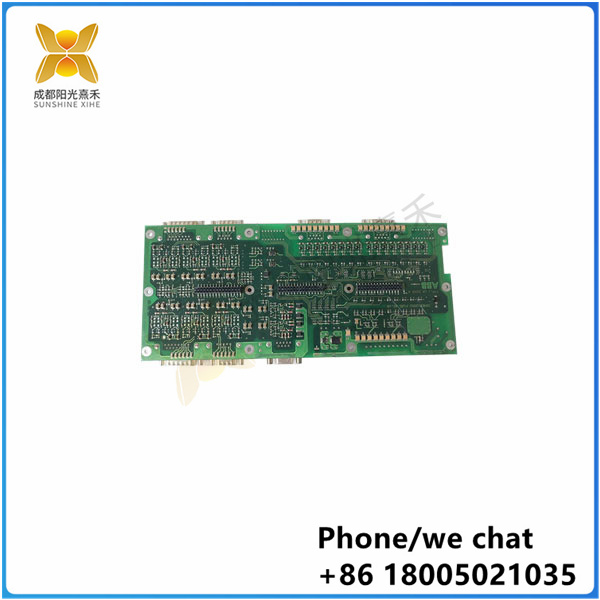

UAD142A01 3BHE012551R0001″ is an extended output power board produced by ABB. The details are as follows:
Purpose: The power supply board is mainly used to provide additional power output, usually used in industrial automation and control systems, to provide DC or AC power required for other devices or modules in the system

Features:
Provide efficient and stable power output.
Allows users to add additional power output as needed, supporting greater system expansion.
Supports multiple power configuration options such as output voltage, current, and power.
It is rigorously tested and verified to ensure stable operation and reliability in harsh industrial environments.
With standard interfaces and connections, modular design simplifies the maintenance and upgrade process

Technical parameters:
Rated voltage: DC 24V.
Rated current: 60A.
Output power: 1440W.
Efficiency: greater than 90%.
Operating temperature range: -40°C to +70°C.
Protection level: IP20.
Comply with IEC certification standards

Technical parameters:
Model: UFD203A101
Serial number: 3BHE019361R0101
Manufacturer: ABB
Signal type: including analog, digital, PWM, etc
Control accuracy: high
Dynamic performance: Fast response
Interface type: Standard interface, such as DIN rail mounting

Applications: The UFD203A101 module is suitable for a variety of industrial environments, including automated production lines, plant control systems, intelligent building systems and environmental monitoring systems

Additional information: The module also features high precision measurement, fast sampling rate, multiple signal input types, and low power consumption design

Product Description: The UFD203A101 module is used to convert analog input to digital output, with a variety of signal input types such as temperature, pressure, flow, etc., and has a low-power design and high reliability to operate stably in harsh industrial environments

As a power amplifier device, the KP3000 may have a high output power, which is very important in sound amplification venues such as KTV to ensure wide and clear sound coverage
Multifunctional sound processing: May include multiple PEQ, feedback suppression, compression and other sound processing features that help improve sound quality and adapt to different singing styles and needs
User-friendly interface: The KP3000 amplifier may be equipped with an easy-to-use interface, such as an LCD color LCD screen, allowing users to quickly adjust Settings and select the desired sound mode
Professional DSP processor: The built-in professional DSP processor can provide high-quality audio signal processing, ensuring sound clarity and dynamic range
System memory function: May have memory function, allowing users to save different sound Settings, easy to switch and use quickly
Device locking function: The device locking function may be provided to prevent misoperation or unauthorized use and to ensure the stability and security of the device in specific situations

The KP2500 model may be a PV inverter with different variants such as the KP2500-112, KP2500-124, KP2500-148, KP2500-212, KP2500-224, and KP2500-248. Common features of these inverters include a one-year product warranty, DC input voltage ranges from 15.5 V to 62 V, DC voltage ratings of 12 V, 24 V or 48 V, and a maximum output power of 2.5 kW. They have nominal AC voltages ranging from 110 V to 240 V, frequencies of 50 Hz or 60 Hz, total harmonic distortion of less than 4%, and have single-phase inputs. These inverters are 90x220x380 mm in size, weigh 6.8 kg, have a maximum efficiency of 90%, and have overload protection, overvoltage protection, overheat protection and polarity reverse protection
