Product introduction：

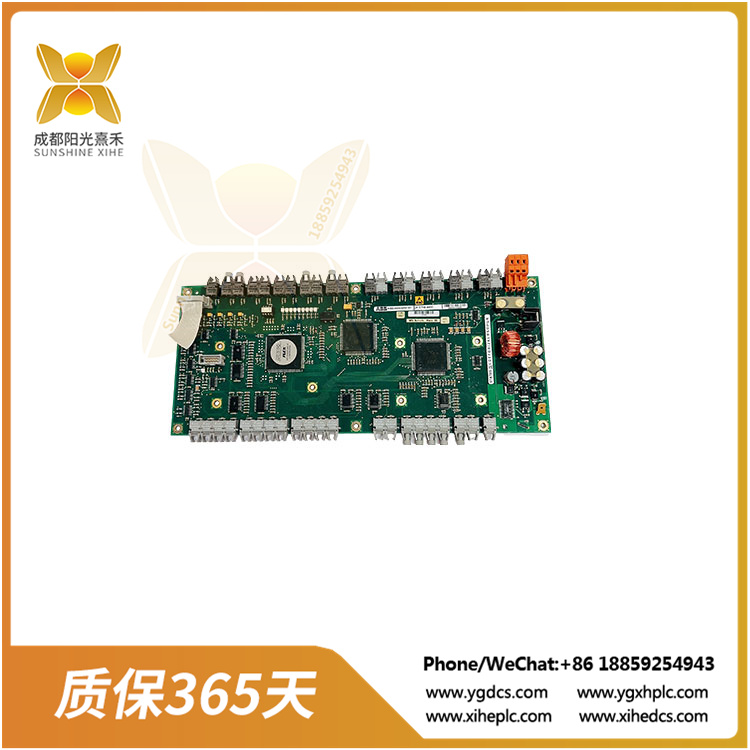

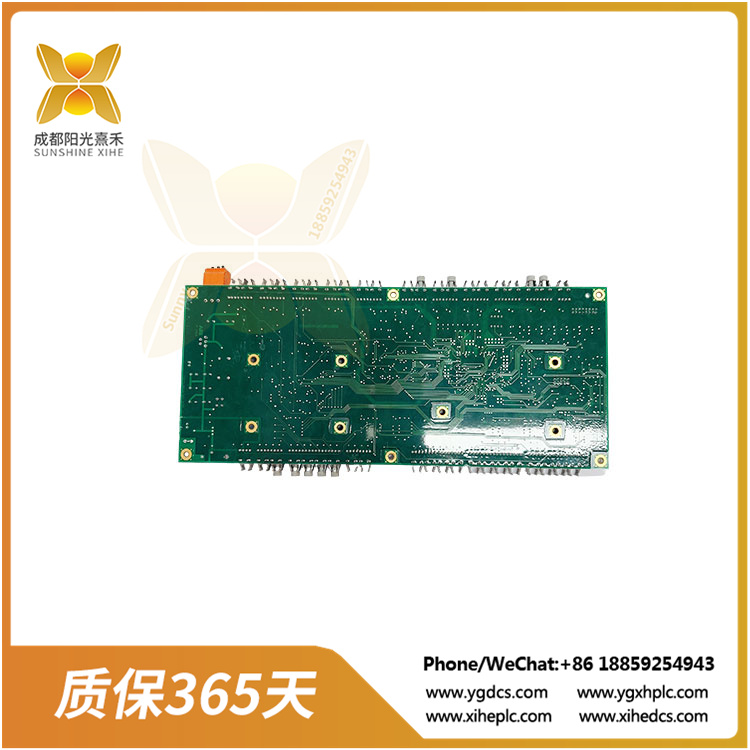

The UFC718AE01 is a universal frequency/count module produced by ABB, which is suitable for the acquisition, conversion and control of frequency/count in industrial automation control systems. Here are some of the key features and parameters of the module:

It has 8 input channels and supports frequency and count input types.
The counting accuracy is 32 bits and the counting speed is up to 50kHz.
Multiple count modes are available, including unidirectional, bidirectional, pulse/direction.
Frequency measurement range up to 20kHz.
Supports a variety of communication interfaces, such as RS485, Ethernet, Modbus, Profibus DP and so on.
The operating power supply is 24V DC, and the operating temperature range is -25℃ to +55℃.
The module has a single-width design for 35mm DIN rail mounting and weighs approximately 0.1kg.
Support for hot swap, flexible configuration and parameter Settings, compatible with AC500 PLC

In addition, UFC718AE01 also has a variety of protection functions, such as short circuit protection, overload protection, undervoltage protection, etc., to ensure the safety of equipment and circuits. It is easy to install, high reliability, long life, widely used in various industrial control and automation applications

The KUC720AE01 is an intelligent controller module produced by ABB with a variety of functions and features. Here are some key information about the module:

It has a variety of input/output types, including 8 digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs to meet a variety of control needs

The module is equipped with 2 serial interfaces (RS232, RS485) and 1 Ethernet interface to support a variety of communication protocols for easy networking communication with other devices

Use ABB’s own programming language (Control Builder), support program control and customization functions, easy for users to develop and expand

High reliability and stability for a variety of industrial automation and process control applications

The operating temperature range is -25°C to +70°C, and the supply voltage is 24V DC

The dimensions are 130mm in height, 85mm in width, 71mm in depth and about 0.5kg in weight

In addition, there is information that KUC720AE01 3BHB003431R0101 is a communication module, usually used in industrial automation and control systems to achieve data communication and information exchange between devices
. It is a kind of excitation control module, used in electric power generation field, control generator excitation system, with the whole system self-test and self-diagnosis function

The 5SHY4045L0003 is an IGCT (Integrated Gate Control Transistor) module manufactured by ABB with the following features and parameters:

It is an asymmetric integrated gate commutator thyristor with maximum load capacity IGCT technology and minimum number of parts

The module uses ACS 6000 IGCT technology, has a high buffer free off rating, and is optimized for medium frequency (3 kHz) and wide temperature range

It has high reliability and high electromagnetic immunity, with a simple control interface for state feedback AC or DC supply voltage

The module has a rated voltage (VRRM) of 4.5kV, a rated current (IR) of 1200A and a maximum on-voltage drop (Vf) of 3.1V

It has high-speed switching capability with a maximum switching speed (dI/dt) of 500A/μs and an operating temperature range of -40°C to +125°C

The 5SHY4045L0003 IGCT module integrates a GTO chip with an anti-parallel diode and a gate driver circuit, which is then connected to its gate driver in a low-inductance manner

The module is widely used in HVDC transmission and other high voltage power applications, as well as for circuit overload and short circuit protection where electrical protection is required, especially in residential and commercial buildings
