Product introduction：

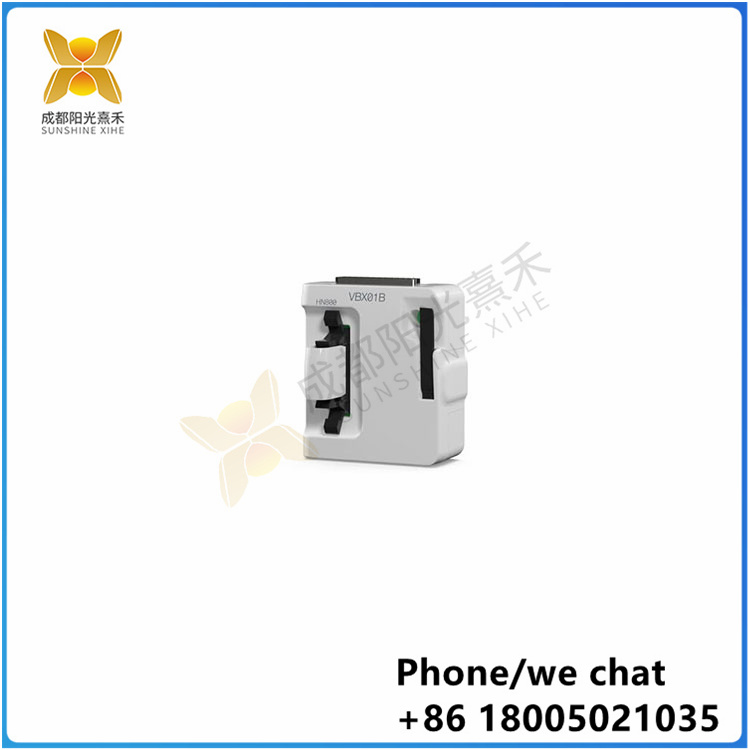

VBX01BA is a bus extender produced by ABB, which has the following features:

Power requirement: 24 V DC (+/-20%)

Operating temperature range: -25°C to +70°C

Storage temperature range: -40°C to +85°C

Humidity range: 5% to 95% relative humidity, no condensation

Maximum bus length: 1000 m

Maximum number of slave stations: 31

Communication speed: up to 12 Mbps

Housing material: metal

Mounting method: DIN rail mounting

Dimensions: Height 90 mm, width 35 mm, depth 130 mm

The VBX01BA bus extender can extend the length of the fieldbus system, increase the number of nodes, distribute data to different slave devices, and provide power to multiple slave devices, thereby improving the flexibility and scalability of the fieldbus system for a variety of automation environments

In addition, the VBX01BA is also considered a 6D digital I/O control module for UR series robotic arms. It provides 16 digital inputs and 16 digital outputs for controlling external devices and sensors. The module is designed to withstand harsh industrial environments with high performance and reliability

The MPRCO86444-005 is a digital input module produced by ABB with the following features and application scenarios:

High reliability: Using high-quality materials and manufacturing processes, stable operation in harsh working environments

High precision: It can accurately receive and process digital signals, reduce errors, and improve control accuracy

Easy integration: Easily integrated into various industrial automation systems for communication and control with other equipment

Scalability: Supports multiple input and output channels and can be expanded according to actual needs

Multiple communication protocols and interfaces: Supports a variety of communication protocols and interfaces to facilitate communication and data exchange with other devices

Modular design: Modular design for easy maintenance and upgrade

Durability: The design is durable and can cope with the requirements of corrosion, high temperature and high humidity in industrial environments

In addition, the MPRC086444-005 has the following features:

Miniaturized design: Similar in size to the popular C6015, it is an ultra-compact IPC

Powerful: DisplayPort connectivity, dual on-board Ethernet adapters, two 100/1000Base-T connections and USB 3.0 and USB 2.0 ports

Strong expansion ability: By adding two RJ45 and two USB 2.0 ports to expand

Integrated UPS: An optional capacitive 1-second UPS is integrated to ensure reliable storage of persistent data in the event of a power failure

Protection function: With overload protection and short circuit protection function, effectively protect other modules to work normally

MPRC086444-005 supports one communication board, four IO slots, and supports a variety of communication protocols such as Modbus TCP, ProfiNet, EtherCAT, EtherNet/IP, CC-Link, etc. Each I/O slot can be independently selected according to customer needs, and a single module supports a maximum of 16 channels. This module also has a liquid crystal display, you can view the communication parameters, IO channel status, module version information, etc., making debugging and maintenance more intuitive. ABS flame-retardant plastic shell, compact size, light weight, with a new installation clip, more solid and reliable installation

PPD113B03-26-1001103BHE023584R2634 is an excitation controller produced by ABB, which is widely used in industrial automation and power systems to control and monitor various parameters and equipment in the production process
. This controller has the following features:

Precise control: The use of advanced control algorithms and hardware, the excitation current can be accurately controlled to ensure the stable operation of the motor or other equipment

Wide adaptability: Suitable for many types of motors and excitation systems, including DC, AC, synchronous and asynchronous motors

High reliability: With stable performance and long life, it can operate stably under harsh conditions, and has error warning and self-diagnosis functions to improve system reliability and stability

Programmability: supports users to program and control according to specific application requirements, with high flexibility

Easy to apply: with a friendly user interface and easy to use operation interface, easy for users to program, debug and maintain

Multiple sensor support: Accelerometers, seismic/velocity sensors, Velomitor and Proximitor are supported for shaft position monitoring of rotating machinery and radial vibration monitoring of rotating machines in equipment balancing applications

Available with -24Vdc converter power: buffered output with current limits per point for access to real-time sensor signals while the device is running

Integration with other control systems: Integration with other control systems provides excellent application flexibility

In addition, the excitation controller also has high performance processor and large capacity memory to realize fast data processing and ensure the real-time and stability of the system
. Support a variety of communication protocols, such as Ethernet/IP, Modbus TCP/IP, etc., to facilitate connection and data exchange with other industrial equipment
. The modular design is easy to expand and maintain, and has easy-to-use programming and debugging tools to reduce development difficulty and development costs

The PPD113B03-26-1001103BHE023584R2634 excitation controller is part of ABB’s UNITROL excitation system, which also includes an AC800PEC central processor with multiple slot options for different industrial control and communication needs

The ABB REM620A_F NAMBBABA33E5BNN1XF is a motor protection and control device produced by ABB, which is specially designed to protect, control, measure and monitor large and medium-sized asynchronous motors requiring differential protection. It is widely used in manufacturing and processing industries
. This device has a variety of features, including but not limited to:

Provides comprehensive protection and control functions for a wide range of industrial applications such as control panels, automotive, pumps, fans, compressors, and more

Designed for power system automation and control, including power grid monitoring, protection and other functions

Supports a variety of communication protocols, such as IEC 61850, DNP3, etc., as well as redundant Ethernet communication without delay through PRP or HSR protocols

Easy-to-use Web-based HMI and local HMI, as well as editable single-line chart display

Provide thoughtful product life cycle service

The main advantage of the REM620A_F NAMBBABA33E5BNN1XF device is its comprehensive protection function, which can monitor the current and voltage in the power system and provide a variety of protection measures, such as over current protection, ground fault protection, over voltage/under voltage protection, over frequency/under frequency protection
. In addition, it has the characteristics of high precision and fast response, as well as a variety of output types to meet the needs of different loads and application scenarios

“XO16N1-B20” and “XO16N1-C3.0” are ABB modules with the following characteristics:

Models: XO16N1-B20 and XO16N1-C3.0, respectively.
Voltage: The rated voltage is 220V.
Frequency: Suitable for 50/60Hz frequency range.
Power: The power of the module is 16W.
Dimensions: Size is 100mm×50mm×30mm, weight is about 0.2 kg.
Applications: These modules are mainly used in control panels, automotive, pumps, fans, compressors and other industrial applications

Features: High efficiency, low power consumption and compact design, easy to install and debug

Function: As a digital output module, they can convert the results of the operation inside the PLC into the level signal required by the external process, and realize the control of the load such as relays, solenoid valves, contactors, indicators and motor soft starters
