Operating Voltage Range:12 to 36V DC

Current Consumption:Max. 50mA

Response Time:≤ 2ms

Operating Temperature Range:-10°C to +50°C

Resolution:0.1μm

Communication Interface:RS-232C/RS-422/RS-485

Control Accuracy:±0.1% of span ± 1μm

Load Capacitance:Up to 200nF

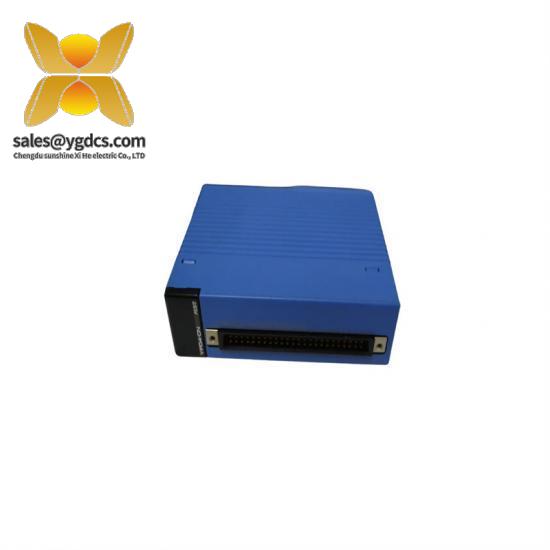

    The YOKOGAWA F3YP04-ON/F3YP04-0N Position Module is engineered to deliver exceptional performance in challenging industrial environments. With its robust design, this module ensures smooth operation under various conditions, from extreme temperatures to demanding mechanical stresses.

    Featuring a versatile semi-closed loop control system based on encoder feedback, it provides accurate velocity control outputs, essential for precise positioning tasks in manufacturing, robotics, and automation systems.

    Equipped with a high-speed start-up mechanism and compatibility with both absolute and incremental encoders, the module ensures quick response times and precise movements, enhancing overall productivity and efficiency.

    Its ability to support data backup using the CPU module ensures operational continuity even in unexpected power disruptions, safeguarding critical processes and minimizing downtime.

    The inclusion of external contact outputs for servo control, driver reset, and brake operations facilitates seamless integration with existing control systems, offering users greater flexibility and ease of installation.

    With its wide operating temperature range and reliable performance, the YOKOGAWA F3YP04-ON/F3YP04-0N Position Module is a versatile addition to any industrial automation setup, promising long-term reliability and cost-effectiveness.
