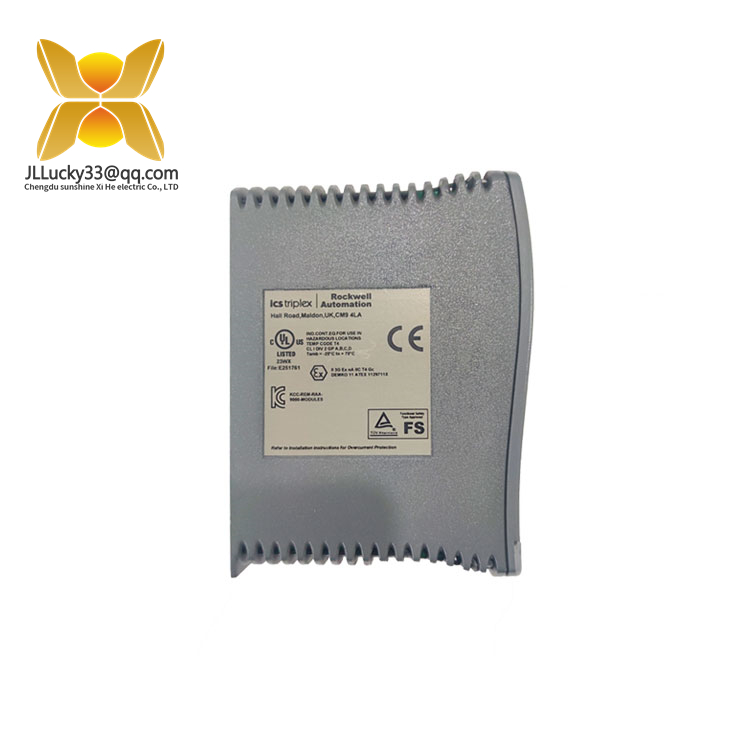

The T9451 is a digital output module from Rockwell Automation’s ICS Triplex family for industrial automation and control systems.
Product characteristics
High reliability: Triple module redundancy (TMR) technology ensures stable operation even in harsh industrial environments.
Flexible configuration: Support a variety of output modes, such as pulse, PWM, fixed potential, etc.
Diagnosis function: Provides rich diagnosis information to facilitate troubleshooting.
Modular design: easy installation and maintenance.
Technical specification
Number of channels: 8 independent digital output channels.
Output voltage: 24VDC.
Output current: Max. 2A per channel.
Response time: less than 0.5 microseconds.
Operating temperature: -40°C to +70°C.
Storage temperature: -40°C to +85°C.
Protection level: IP67.
Application field
The T9451 module is widely used in the following areas:
Process control: control valves, motors and other actuators.
Automated production line: control the action of the robot, the operation of the conveyor belt, etc.
Safety system: control alarm, emergency shutdown, etc.
Manufacturing: Used to control robots, machine tools, conveyors and other equipment on the production line.
Building automation: used to control air conditioning, lighting, security and other systems in the building.
Product use
The main role of the T9451 is to convert the digital signals of the control system into electrical signals, which are output to field equipment, such as control relays, solenoid valves, indicator lights, etc.
The T9451 is a digital output module manufactured by ICS Triplex, a Trusted TMR system with high performance and reliability. The module adopts three-mode redundancy (TMR) technology, each output channel is composed of three independent circuits, even if one circuit fails, the other two circuits can still ensure the correctness of the output, which greatly improves the reliability of the system. It offers eight digital output channels with an output voltage of 24VDC and a maximum output current of 2A per channel. In addition, the T9451 supports a variety of output modes, such as pulse, PWM, fixed potential, etc., and can be configured flexibly. Its operating temperature range is -40 ° C to 70 ° C, storage temperature is -40 ° C to 85 ° C, and the protection level reaches IP67. The module is widely used in industrial automation, safety control and other fields, such as petrochemical, automobile manufacturing, food and beverage.
