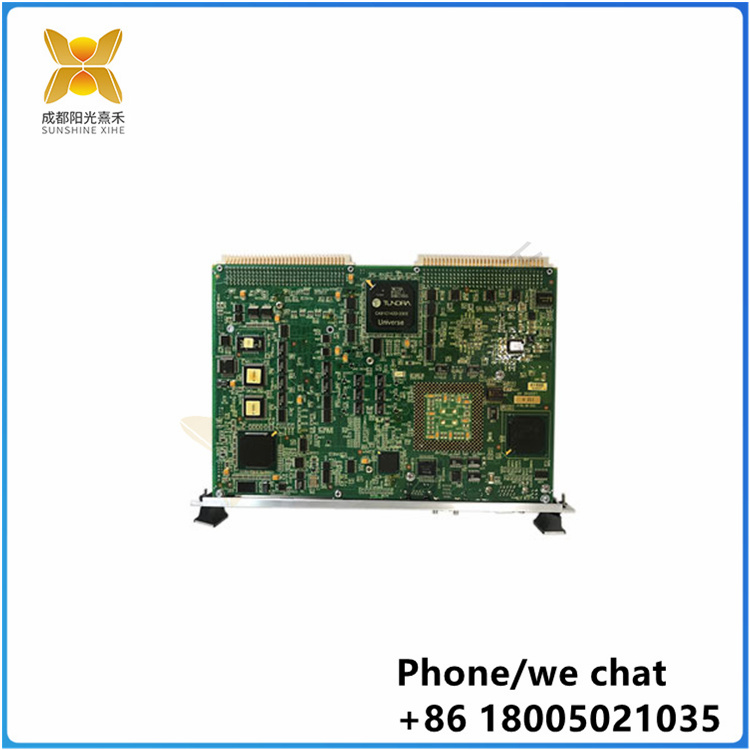

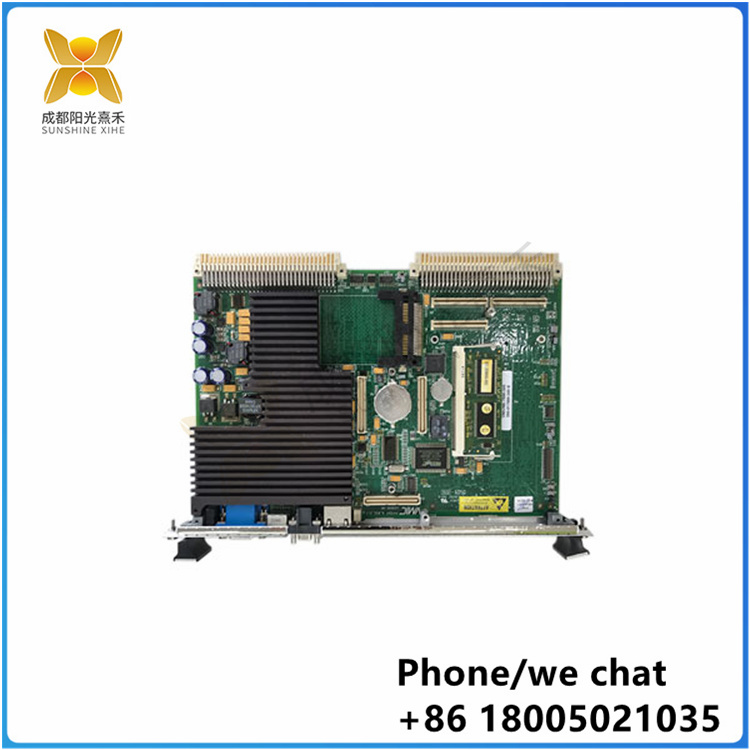

VMIVME-7698: Advanced VME bus module
summarize
The VMIVME-7698 is a VME bus module designed for high-performance computing and data-intensive applications. It combines the latest processor technology, high-speed data transmission capabilities and robust scalability to meet the most demanding industrial and scientific requirements.

peculiarity
Efficient processor: The latest high-performance processors ensure fast processing of large amounts of data.
High-speed VME interface: supports VME64 and VME64e standards, providing high-speed data transmission channels.
Modular design: Modular design allows flexible configuration to adapt to different application requirements.
High reliability: Designed for long periods of stable operation, suitable for 24/7 uninterrupted operation.
Environmental adaptability: Designed to adapt to extreme temperature and vibration conditions, suitable for a variety of environments.
Technical specification
Processor: Intel Core i7-9700K, 3.6GHz base frequency, Max Rui frequency 4.9GHz.
Memory: DDR4 2666MHz ECC SDRAM, supports up to 64GB.
Storage:
2.5-inch SATA III SSD, supports NVMe protocol and has a maximum capacity of 4TB.
CFast 2.0 memory card slot, supports up to 256GB.
VME bus: Supports VME64 and VME64e bus standards, providing up to 32 VME signal lines.
I/O interface:
Four 10/100/1000 Mbps Ethernet interfaces
6 USB 3.1 Gen 2 ports
2 RS-232 serial interfaces
1 RS-422/485 serial interface
Display: HDMI 2.0a interface, support 4K resolution.
Power supply: Support DC 12V to 48V wide voltage input.
Environmental requirements:
Operating temperature: -55°C to +105°C
Storage temperature: -65°C to +150°C
Vibration: 10g, 5-500Hz
Impact: 50g, 11ms
Application field
The VMIVME-7698 is suitable for applications that require high-speed data processing and complex calculations, including but not limited to:

Aerospace: Used in satellite data processing and flight control systems.
Military electronics: Signal processing for radar and communication systems.
Scientific research: Used for particle physics experiments and astronomical observation data analysis.
Industrial automation: for robot control and production line data acquisition
